Using scripts in a report template

<< Click to Display Table of Contents >>

Navigation:  Feature Details > Report Template Designer >

Using scripts in a report template



Scripts in a report template can be used to:



obtain a grand total of amounts

manipulate amounts

display custom fields in a certain way

set format

provide custom summaries

prevent bands from displaying if no data

merge multiple datafields to display in the same field

display checkbox instead of text True or False

have custom field display as currency

etc

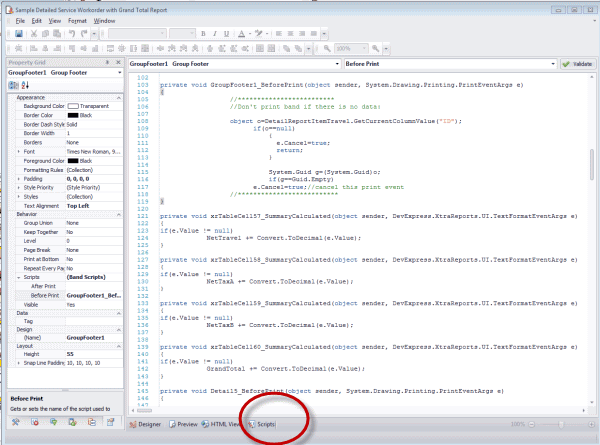

ReportTemplateScript







1. View existing scripts

2. Validate existing scripts

3. To see Scripts Errors after validation

4. To jump to a specific existing script

5. To create new script for a specific band or label

6. Providing script support

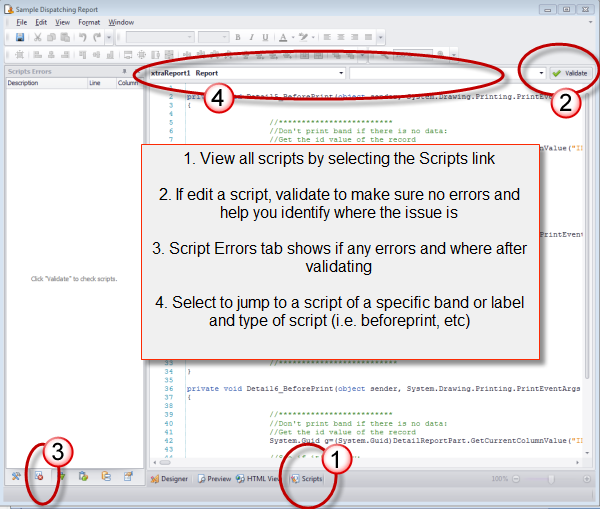

ReportTemplateScript2

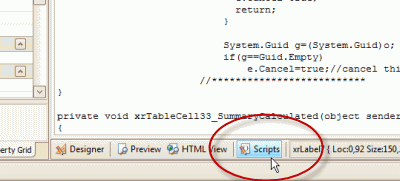

1. To see existing scripts in a report template, click on the Scripts panel selection



ReportTemplateScript3



2. If you make any edits to any scripts, use the Validate to make sure no errors. It will not fix the errors, but it will let you know if there are errors.



ReportTemplateScript5

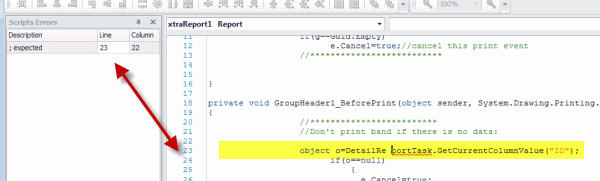

3. Errors will display in the Scripts Errors tab so you can see what line and column has an issue, and resolve it. Of course, the error description because of the way scripts are, may not be specific to resolve the issue - as in that in the screenshot below, the issue is actually because the DetailReportTask has a space in it.



ReportTemplateScript6

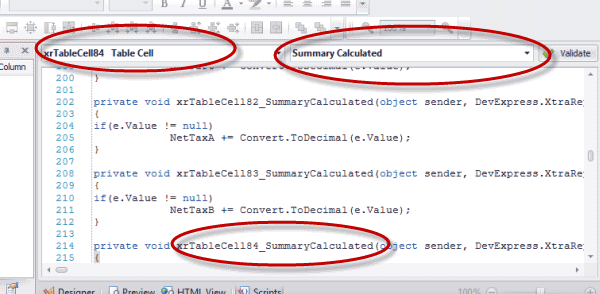

4. If you want to edit a specific script for a specific field or band without scrolling through them all, just drop down and select the band or field the script is for and what type of script it is



ReportTemplateScript7





Note of course, that if you select a band or script, and a script type that does not presently have a script, the report designer will input for you at the bottom of the list of existing scripts as assuming you meant to create a new script

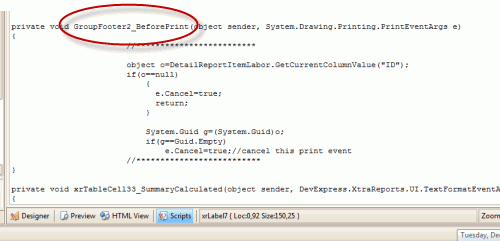

You can identify which script is for which band or label etc as each is identified in its code. For example, the screenshot below, we know this is the Before_Print script for the GroupFooter2 band.



ReportTemplateScript4





5. Create a new script for a specific band or label either from the Properties for the band/label, or selecting within the Scripts panel:

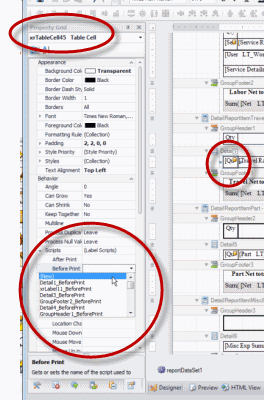

a. Create new script from the Properties for the band/label:



i. click on the band or label you want to create the script specifically for

ii. view the Properties tab

iii. expand the Scripts property, and select New for the script type you want

iv. the script command structure will be added into the Scripts for you to now edit as needed

ReportTemplateScript8   ReportTemplateScript8b

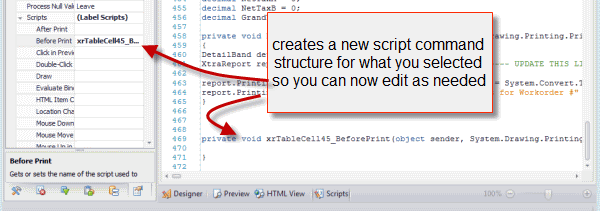

ReportTemplateScript8c

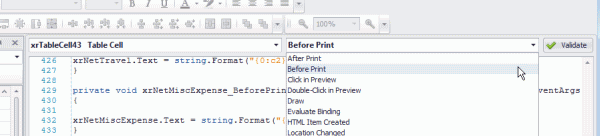

b. Create new script from within Scripts panel:



i. instead of via the Properties tab, just select the band/label from the selection at the top of the Scripts panel

ii. than select the type of script (i.e. Before Print, etc)

iii. the script command structure will be added into the Scripts for you to now edit as needed

ReportTemplateScript8d





6. Providing script support is outside of the realm of AyaNova's free support.



If you are interested in having a custom report template created for you, provide the following information sent directly to support@ayanova.com



a mockup of the report you would like (in Word, Excel, PDF)  or existing report template exported to file from AyaNova that you want further customized.

identify from what AyaNova entry screen or grid this report is for (from Service Workorder entry screen, from Client entry screen, from Labor grid in Service navigation pane, etc)

identify in red font  in the mockup the datafields that correspond with fields of that AyaNova entry screen

if report will use logos or images, be sure to provide also attached to your email

any additional information you believe may be relevant that will help me understand how the report will look and act with actual data and how it will react based on the data.
