Changes from AyaNova version 7¶

This help page is a guide to the existing features changed from AyaNova 7.

It does not list all the new features.

For the installation guide for AyaNova 8 see the AyaNova 8 server installation guide.

For a technical guide with instructions to migrate from AyaNova 7 to AyaNova 8 see the Operations migrate guide.

For a business administration guide to the steps required after the migration from v7 to v8 see the Business administration migrate guide.

AyaNova 8 is a completely new application built from the ground up with many improvements from AyaNova 7.

This document does not list every change just the more significant ones.

Evaluating AyaNova 8¶

This document is a brief overview only, when you are ready to check out AyaNova 8 in more detail we have a guided tour that will step you through the process.

Fundamental changes from v7¶

Server platform¶

AyaNova 8 is now a dedicated high performance stand-alone Server application that runs on Windows or Linux platforms.

The AyaNova database can even be moved between any supported operating system as the backups are compatible with any instance of AyaNova running anywhere.

Database¶

AyaNova now uses PostgreSQL database server exclusively. No other database server is required or supported.

In-house or as a subscription service¶

AyaNova can be self-installed (just like AyaNova 7) as a "Perpetual" licensed version with installation options for single standalone Windows or Linux computers or in-house private local area networks.

AyaNova is also available as a "Subscription" licensed service hosted by us to eliminate the costs of hardware ownership and maintenance and be able to easily access AyaNova from anywhere on the internet.

You can also switch between self-hosted or the subscription service as your needs change.

Add-on options are now included with AyaNova¶

Starting with AyaNova 8 we are including previously optional add-on products at no extra charge.

The following add-on's from AyaNova 7 are either included or built in features of AyaNova 8 at no extra cost:

Import / export (including updating) is now built in and expanded
WBI web browser interface is built in
RI responsive interface for smaller screen devices is built in
QuickNotify direct user notification is now a built in feature
QBI QuickBooks desktop edition interface for AyaNova 8 is included at no extra cost
More on the way

Licensing simplified¶

AyaNova 7 was licensed by scheduleable user resource. AyaNova 8 is now licensed by User. This means any User who is set to Active in AyaNova 8 requires a license. Inactive Users do not require a license.

Pricing has been reduced from AyaNova 7 to support this simplification.

User interface changes from v7¶

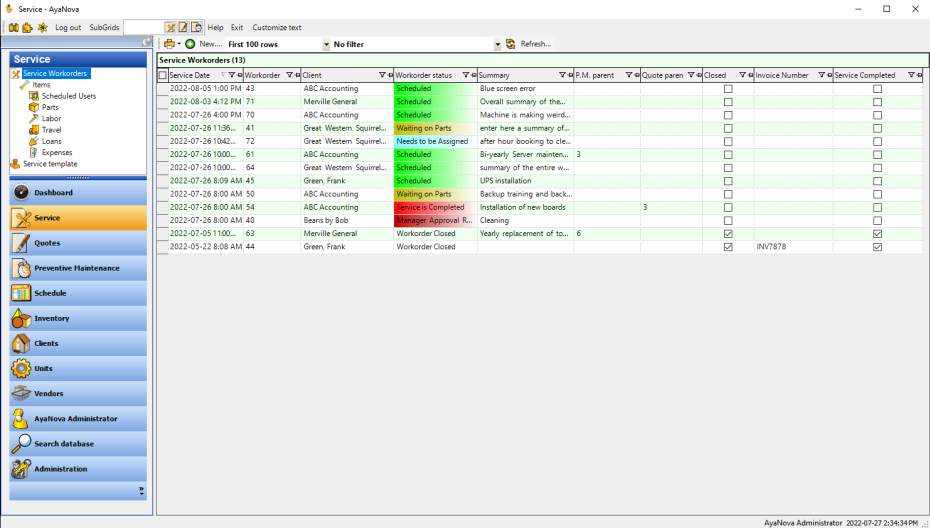

AyaNova 7 had several different user interfaces: the main interface was a Windows desktop application and as optional add-on products we had several different web browser interfaces for varying levels of devices. Each web interface had a limited sub-set of the full features in the Windows application and required separate installation and configuration procedures.

AyaNova 8 has a single web application interface that adapts itself automatically to the device format. Any device on any platform with a modern web browser from a smart phone to a full sized desktop computer can use all features of AyaNova equally. This means you can use AyaNova on an iPhone, Android, Windows desktop, iOS, Linux etc.

Having one web application interface means there is nothing to install or update on all user devices and ensures that we will always have all features available to all users.

In order to support the front end "client" devices using AyaNova, there is now a back end self contained AyaNova server that handles all requests and can be installed on Linux or Windows operating systems.

Design changes¶

AyaNova 8 interface features a familiar layout that has been re-designed to improve usability over AyaNova 7.

modern, clean uncluttered interface
simple, sharp scalable SVG icons that look sharp on any device
now every form can be easily customized to remove unused fields
more working area screen space freed up
simplified work orders, quotes and PM's with more features but only visible when you use them

Existing feature changes¶

One of our main goals with AyaNova 8 is to make AyaNova easier to use and add many new features and improvements based directly on feedback from our customers and hundreds of requests have been implemented in AyaNova 8.

In order to support this some major areas of AyaNova have been changed:

Clients renamed¶

Clients have been renamed to Customers

Client User's and Contacts¶

Customers in AyaNova 8 now have unlimited Contacts as a seperate collection of User type objects so you can optionally allow them to login to use the Customer interface and subscribe to Customer specific notifications.

Migrating from AyaNova 7 will result in a Customer Contact type User being created for each v7 Customer or HeadOffice type User account and in addition a Contact will be created in v8 if the v7 Client has a name set in the "Contact" text field with the Client phone and email numbers being re-used for the contact created this way.

The Contact notes text field in v7 that is intended for listing extra contacts will be migrated to the v8 general Customer Notes field as there is no practical way to migrate that text field as additional Contact type users in v8.

As with all User / Contact accounts created in v8 no login is possible by those users until the administrator allows it and assigns a password so there is no security risk of Contact users logging in that previously could not.

Inventory changes¶

The AyaNova 8 inventory system is completely new and works differently than the AyaNova 7 inventory system.

It is both more flexible as it allows for easily changing values after the fact but more strict in that it has a far more strict control over inventory values than AyaNova 7 allowed.

V8 inventory is "live" and affected instantly when a PO or Work Order are saved with any changes of the Received or consumed quantity for a part. This means that when you receive 10 parts on a PO they will be available for use immediately on work orders etc. If the PO is then edited to change the 10 to a 5, the inventory is immediately updated to remove the 5 that are now not received.

There is no longer a "Used in service" checkbox in Work orders, they consume inventory immediately upon entry and save.

If a work order consumes a quantity of 5 for a part and is saved that amount is immediately removed from inventory. If the work order is subsequently edited to change the 5 to a 3 then a quantity of 2 is immediately returned to inventory upon saving the changed work order.

All inventory changes are tracked in a blockchain inside your AyaNova database and this block chain can be viewed in the Inventory transactions data table.

Inventory transactions are required for any change of inventory and the inventory transaction blockchain is the only repository for inventory quantities in AyaNova.

AyaNova 8 does not permit negative on hand inventory values to exist, every part consumed must have a quantity of on-hand inventory to back it up or it's not allowed to be saved.

In v7 a "Part inventory adjustment" was a separate type of object from the actual inventory itself. In v8 inventory is adjusted by making an inventory transaction entry directly into the inventory blockchain. In v8 serial numbers are updated via the Part object, not the inventory adjustment / transaction as in v7.

Suggested quantity¶

If there is a need to enter parts on a work order as a placeholder so as not to affect inventory for planning purposes the work order item part's "Suggested Quantity" field can be utilized for this purpose.

Purchase orders / receipts¶

Purchase orders and receipts have been combined in v8 into the single Purchase order object.

The various rules around Purchase order editing have been eliminated. In v8 purchase order editing ability is no longer controlled by their Status and a PO can be edited anywhere any time.

Behind the scenes AyaNova will make the necessary adjustments to inventory to support any edit changes made to purchase orders if they have already affected inventory or work order item part requests. This allows for easy edits when things change post order, for example if a supplier has changed a price or an item has been replaced by another one after being ordered.

Status is still available and can be set to any value at any time as users need for reference purposes displaying in lists and controlling the process.

AyaNova itself will not automatically set or react to changes to the PO status.

Part Number primary identifier fields¶

In v7 Parts had Part number and Part Name fields. Part Number was always intended as the primary identifier for a part however in v8 we've changed Parts to use the more consistent Part Name as the primary identifier.

Users should use the Part Name field in v8 as the primary and sole identifier for a Part wherever possible. This field like all v8 name fields has no practical length limit and should be the main field used to identify parts both internally and externally.

In order to accomodate this change, the V8 migration utility offers two ways to migrate the existing part fields as an optional choice before migration:

Consolidate the v7 Part number and Part name fields into the single v8 Part Name field {partnumber} {partname} (default and recommended for most)
Import the v7 Part number field into the v8 Part name field and the v7 Part's 'Name' field into the v8 Part's 'Description' field

Part serial numbers¶

Serial numbers have been separated from inventory for v8.

They now reside in a collection of serials for each Part and you can select from the list or enter alternatives or none at all at any time.

This supports the many requests from users for the ability to be more free-form with their serial numbers to allow for mistakes or unique needs but still record them in the system when they are consumed on work orders for warranty purposes etc.

Migrating from v7 will place any existing serials into the serial number collection automatically.

Travel and Service Rates¶

Similar to how Tax Codes worked in AyaNova 7, Travel and Service rates will now have their price affecting fields (Charge, Cost) frozen once that Rate has been assigned to any object to preserve data integrity.

Service Work orders¶

Flexibility changes¶

User interface¶

The user interface for the work order has been designed to reduce the clutter on screen as much as possible while still using the fewest possible clicks to navigate around from section to section.

In addition we've ensured that a work order can be fully completed using a device as narrow as a 360 pixel wide smart phone.

Conflicting edits reduction¶

In v7 an entire work order was updated at once in the database during a save meaning only one person at a time could edit any part of that entire work order and save without conflict with another user attempting to edit any part of the same work order at the same time.

In v8 we have broken out the work order save process into each individual section so the work order Header is one section, a work order Item is another, a work order item part it's own section etc. This means if two (or more) people are working separately in the same work order, as long as they are not working in the same section there is no conflict.

For example two people could be working with two different work order items at the same time and save independently of each other or two or more people could be entering parts separately in the same work order item without conflict. Note that there are still circumstances where a conflict can occur and we still recommend people take steps to avoid working in the same areas at the same time, but conflicts will be greatly reduced. V8 still uses the first save wins method of conflict resolution so that no one can save and lose their changes without knowing it.

Decoupling of Client¶

In v7 a Client was tightly connected to a work order and needed to be selected prior to creation of a work order and could not be changed. We've made many behind the scenes structural changes to remove this limitation. In v8 the work order's Customer can be changed at any time.

Decoupling of Contract¶

In v7 a contract was tightly connected to a particular Client and a work order in turn was tighly coupled to the Contract selected. In v8 the work order structure has been changed to allow a Contract to be changed at any time for a work order. Now, a Contract will be automatically applied to a work order if a Customer, Head Office or Unit is selected for the work order and it has no current contract selected. In addition the Contract selected is exposed as a user selectable item so any contract can be applied at any time to any work order or removed if not appropriate.

Address¶

Work orders now have their own Address field which is stored with the work order itself rather than being linked to the Client / Customer or head office. The Customer address will be used unless Bill head office is in effect in which case the Head office address will be the default. In addition there is now a method to quickly select from any relevant address in the work order itself if the User wants to change the entire Workorder address to (for example) one of the Unit's addresses on that work order or type in an alternative value. This preserves history and makes the Work order more flexible for addressing.

Work order Templates and Duplicate / copy to¶

Work orders can now be duplicated like all other objects in AyaNova 8. In addition a Work order can be copied to a new Quote or new Preventive Maintenance object. In fact there is the ability now in v8 to convert any quote, work order or preventive maintenance into any other one of those objects, so, for example a Preventive Maintenance order can be turned into a Quote via a Work order or a Work order can be converted into a PM or Quote directly.

For this reason the v7 templates feature is no longer required and has not been ported to v8.

Work order status¶

The work order status feature has been greatly expanded into a set of powerful features that can support process control with:

tracking of every change of status (who and when visible right inside the work order)
restrictions by security role of who can set or unset any status (this allows for controlling the entire service process from creation to final billing or follow up)
locking status which when selected freezes a work order (replaces the v7 "Service completed" checkbox)
completed type status to indicate a work order is completed which can be used with notification etc (replaces the v7 "Closed" checkbox)

These new features are optional and not necessary to use if just a simple status indicator is desired and it can be used in much the same way as in v7 if there isn't a need for the extra features.

Closed and service completed¶

Closed and Service completed have been replaced by the new work order status system.

Customization¶

As with all forms in AyaNova 8, nearly all fields and sections on the work order form can be removed or made mandatory for entry via the new form customization feature.

To support this, we've made changes behind the scenes to reduce as much as possible the number of manadatory by default fields on a work order that must be filled in so that users can remove more things from the interface through customization if they don't require them.

Custom fields / attachments / wiki¶

In v7 custom fields, attachments (wiki files) and wiki were supported only in the Work order Item part of the work order. We have now added those to the main Work order itself and the Work order item Unit record in addition to the work order item. So there are now three areas in a work order that support these features. Migrated data from v7 will go to the Work order item record the same as v7.

Work order inventory changes¶

When a work order has a part added / removed or changed, inventory and serial numbers are updated immediately upon save. There is no longer a "Used in service" checkbox to affect inventory; inventory is now considered immediately affected upon save of a work order item part record. This resolves a number of issues that could arise in the past.

Serial numbers can be edited directly from the Part record and are not tied to inventory in v8.

Work order Items¶

The work order items now have a "Sequence" field and can be re-ordered as desired so that they are listed in the UI and print on work orders in a specific order. If no order is chosen it defaults to the v7 system of newer items appended to the bottom of the list.

Work order item Units¶

Units are now a collection under work order item rather than a single item. This facilitates scenarios where a large number of units need to be serviced identically at the same time (inspection, maintenance etc). Users can choose to select multiple units or a single unit as appropriate.

We have also included the ability to bulk select Units from any customer, not just the one selected on the work order to support scenarios where the equipment being service may rotate between customers.

Work order item Outside Service¶

Outside service is now a collection under work order item rather than a single item to mirror the change for Units. Now, in the Outside service section there is a Unit selection control for setting to which Unit the Outside service applies.

Work order item Tasks¶

Tasks have been changed to a collection stored with the work order rather than linked to a separate collection of tasks in a task group. Now, a user can simply type in a list of tasks or still select from a task group which will be used to fill in the work order rather than link to it so it can be edited as needed. In addition tasks are now re-orderable by setting a Sequence field.

With tasks being stored with the work order it means that Task groups and their tasks can be changed at any time without affecting existing work orders with tasks.

Pricing¶

Pricing and costs are now clearly displayed on the work order in a consistent manner between all billable items that have prices.

List price and final price are both shown so that it's clear when a contract or manual override affects the final price.

Most non management roles will not see costs or in some cases prices by default.

Most prices (except for Parts which tend to have volatile pricing) are not stored with the work order but instead calculated on the fly when a work order is opened / printed.

This is part of the decoupling process that allows for easily changing the Contract or Customer on an existing Work order.

This means that similar to v7 some items like taxes and rates cannot be changed once they have been used on a work order however Parts are an exception as the pricing is considered more volatile so part prices are "snapshotted" on being added to a work order and stored with the work order itself.

Customer and Unit data list "Last completed... " columns¶

In v7 the Clients grid and the Units grid show the "Last closed service workorder" and "Last closed service date" columns.

In v8 the Customer and Unit data tables now have "Last work order" and "Last service date" columns available which will display the most recent Work order that Customer or Unit has been selected on regardless of Work order Status.

Unit Models¶

In v8 Unit Models no longer have the "Model Number" field. The "Name" field is now the primary identifier. Migrated v7 Unit Models will have their Model Number and Name fields combined into the single v8 Name field.

Quotes¶

Quotes now provide all the same sections as a service Work order with the sole exception of Part Requests which are not applicable to Quotes. Menu options are available to directly duplicate a quote to a PM or Work order (and optionally WIKI and File Attachments as well). Quotes can also be duplicated to a new Quote.

Preventive Maintenance ("PM")¶

PMs now provide all the same sections as a service Work order with the sole exception of Part Requests which are not applicable to PMs. Menu options are available to directly duplicate a PM to a Quote or Work order (and optionally WIKI and File Attachments as well). PMs can also be duplicated to a new PM.

The "Desired day of week" to generate the Service Work Order on has been replaced by an "Exclude days of the week" control so instead of choosing a particular day to generate to now you would choose days not to generate on and the system will find the closest available day that matches that choice.

Contracts¶

Service contracts have been expanded with new features and more flexibility when applying them to work orders.

You can now select a discount off list price or a markup on cost for special contract pricing.

In addition to the v7 general discount in a contract you can now target specific parts or rates by selecting specific tags they must have for the contract to apply.

This gives a lot of flexibility in cases where a certain class or type of part for example should be included in discounts but not others.

There are now also features for maximum response time that tie into notification and close by date features of a work order automatically for contracts that include a response time commitment.

Custom fields¶

In v8 all main objects support custom fields and now there are 16 of them versus 10 in AyaNova 7.

Localized text is now Translation¶

Localized text has been renamed to Translation

Security groups -> Authorization Roles¶

Security groups have been replaced by a Roles based authorization system.

In v7 you would select a security group for a user to restrict their access to objects in AyaNova.

In v8 a User is now assigned one or more Authorization Roles which control their access. Roles are pre-defined and pertain to the department or job requirements of the User for example there are roles for Inventory, Accounting, Business administration, Technician, Subcontractor etc. Whichever roles you assign to a user give them access to those areas of AyaNova.

Migrating Users from AyaNova 7 will automatically set migrated Users to have no role for security; the business administrator will need to set each User to the most appropriate new roles after migration is completed.

For more about migrating from a business administration standpoint see the business administration migration guide and for more about the techncial aspects of the migration process see the Migration technical guide.

For details see the Authorization roles guide for more information.

Notification system¶

The Notification system has been completely overhauled and upgraded to be easier to configure and use with many new notification event types added for over 30 notification types available with many new filters available for even finer control of notification events.

Dashboard¶

The User's home Dashboard has been completely overhauled and improved over v7 and is now customizable with many dashboard widgets including graphs, schedules and lists.

Schedule markers¶

In AyaNova 7 there were two types of schedule markers: regular and "follow up". The follow up type was tied to a particular object and provided a button to open that object. The regular type did not have a link to an object. Both had a "Completed" check box.

In AyaNova 8 the Schedule marker has been replaced by two separate objects the Reminder which is the replacement for a regular schedule marker and the Review object which replaces the follow up type.

Reminder¶

A Reminder is similar to a regular v7 Schedule marker and can not be tied to a particular object. It's purpose is to provide a place where a Note can be tied to a date and display in the Schedule form. Basically the original core purpose of a Schedule marker.

Review¶

A Review is tied to a particular object and has a Review Date and a Completed date and also displays in the graphical Schedule. It's purpose is to replace the v7 Follow Up feature and is intended for exactly that purpose: to follow up or review the status of a particular object in AyaNova be it a Customer or Unit or some other main object type.

Record history¶

In AyaNova 7 there was a Record history feature which would show who created an object and when it was created and who last edited an object and when. No intermediate changes were tracked, in other words you couldn't see any history of changes, only the most recent.

In v8 we have expanded this feature into a full Event log that not only tracks all changes to business objects over time, but also many other important User actions in AyaNova and ties into the expanded Notification system.

Tags¶

Tags are a major new feature for AyaNova 8 that replace and improve upon several different categorization features in v7.

The following objects from v7 have been replaced by tags in v8:

User certification
User skill
Client group
Dispatch zone
Part category
Regions
Scheduleable user group
Unit service type
Unit model category
Work order category
Work order item type

Migrating from v7 will automatically create tags for these objects and will then tag the corresponding objects that were set to these category items with the new tags created.

Tags are not only used for categorization but can be used with many other features in AyaNova to make it easier to select items for automated processes, notifications, customer login access rights, bulk delete operations and much more.

Reports¶

AyaNova 8 has a built in report template editor to create and customize existing reports, however, the new reporting system is completely new and not compatible with v7 style report templates which relied on a proprietary 3rd party commercial reporting component and system.

All reporting in AyaNova is now open standards HTML based and uses Javascript as the report language and widely used and popular HTML / Mustache templating system.

Using open standard commonly used web technology for reporting means far more people are now available to edit and create reports in AyaNova using the knowledge they already have.

Reports that were customized in v7 and do not have a replacement provided with the stock v8 report templates will need to be re-created in v8, it's not possible to migrate reports automatically.

Wiki¶

The Wiki feature has been changed substantially based on user feedback.

Editor¶

Previously there was a hybrid Wiki system, remote users (WBI) would interact with an HTML editor and HTML representation of the wiki document and windows AyaNova users would interact with a "rich text" editor similar to Windows Wordpad. This required behind the scenes translations between Rich text format and HTML format and the results were not always compatible. In addition, it would have been very difficult to edit Wiki pages on small screen devices.

Now, a Wiki document is edited using Markdown a simple open standard plain text formatting language. This allows us to provide an efficient and easy to use editor for Wiki pages that will work on any AyaNova supported device.

Embedded files¶

Previously users were able to embed files into a Wiki document which was in turn stored directly in the AyaNova database which could cause issues and lead to longer backup and restore times.

All v7 "Assigned docs" and wiki embedded file features have been consolidated in v8 into a new Attachments feature:

in v7 embedded wiki files were stored inside the database, now Attachments are stored in a special AyaNova controlled folder in the file system to avoid bloating the database
In v7 Documents were simply links to existing files visible to the workstations / server; file attachments are stored in a special folder managed by the AyaNova server making it easier to backup and restore and ensure all data is consolidated in one folder
Rename - can now rename an attached file
Notes - there is now a notes field
All business objects in v8 support attachments

Display formats¶

In v7 there were Global settings for Part display format, Unit display format etc. In v8 this feature has been replaced by autocomplete list control templates which allow customizing all autocomplete lists to choose which fields are used for display and searching in v8.

Import Export plugin¶

The v7 Import / Export plugin and optional Update feature has been replaced in v8 with a built-in export extension and import / update utility.

Features not carried over from v7 to v8¶

Service bank¶

The service bank feature has not been ported to AyaNova 8 as it does not appear to be widely used and would need extensive re-working. We could be wrong about this so if the Service Bank feature is important to you please let us know and how you would like to see it implemented as a feature. If there is demand for it we can work it back into AyaNova 8 as a feature based on your feedback.

Where to go next¶

We recommend taking the Evaluation to production guided tour next which will step you through getting to know AyaNova 8 in the shortest time possible.
