Part entry screen

<< Click to Display Table of Contents >>

Navigation:  Feature Details > Inventory - Parts >

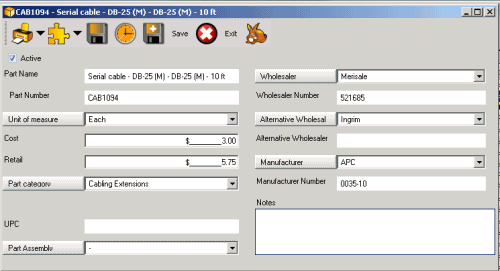

Part entry screen



Part1



Part entry screen fields:



Part3

Active

If checked, this part will appear in the Parts grid screen, and be listed in Parts drop down selection lists such as in Service Workorder, Purchase Orders etc



If unchecked, this part will only appear in the Parts grid screen and would not be available for selection elsewhere



If you no longer want a part to be available for selection, un-check the Active field and save.



If the part was mistakenly created and no inventory has been set for it, no PO's made for it, no selection in any other AyaNova object - then you can delete it via the Delete MenuDelete menu option.



Part Name

A short description of the part displayed for selection from drop down lists, handy when part numbers are not easily descriptive. Keep it short and in a format that the customer and AyaNova users can understand.



Part Number

This is a required field.



Usually the number used in your point of sale or accounting software.  If you plan to integrate AyaNova with accounting software in future, or you presently integrate by entering invoices manually, you should be careful to enter part numbers exactly in the same format used in your accounting or point of sale software.

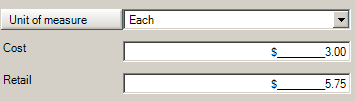

Unit of Measure

part4

Identify the measure of the part - i.e. "each”, “box”, “case”, “dozen”, “gallon”, “feet”, “meter” etc



Cost

The currency amount you enter here will be available to the Service Workorders, Quotes and PM's where this part is selected.



Retail

The currency amount you enter here will show as the retail price in Service Workorders, Quotes and PM's where this part is selected.  Do note that you can edit the amount in a service workorder, quote or PM if needed.



Part Category

Part5

A way of grouping parts together for filtering or reporting on.



UPC

Entering the UPC code here will allow ease of use elsewhere in AyaNova. For example, if users are entering Parts in a Service Work order, they can select the UPC field and scan in the part using a bar code scanner which will automatically select the appropriate part. This adds up to saved time and less mistakes in entry.





Part Assembly

A way of grouping parts together for filtering and/or reporting.

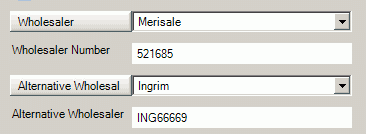

Wholesaler

Part7



From whom you purchase the Part from. This may also be referred to as a distributor and as with all text you see in AyaNova you can change the localized text from Wholesaler to Distributor easily if necessary.



For a part to be ordered via a purchase order for that vendor, it must have that vendor selected as either the Wholesaler or the Alternative Wholesaler.



Setting this also allows you to take advantage of the Restock By Vendor feature in a purchase order where by setting the wholesaler for the part, you can obtain a list of all parts that are below the Minimum Stock Level and easily order without having to do a manual inventory count of what is needed to be ordered.



The drop down lists all available Vendors set as Wholesalers that a Part could potentially be associated with.



If the Wholesaler is not in the drop down list and no Wholesaler has been selected, then with the drop down selection list blank, click on the Wholesaler button to open up a new Vendor entry screen so that you can enter the Vendor details, save, close and then select it from this list.



Or if the Wholesaler is selected from the drop down list, you can open up the Vendor entry screen displaying that Vendor information by clicking on the Wholesaler button.



Setting the wholesaler allows you to use the time saving list of items that need to be reordered based on wholesaler and minimum stock level via the purchase order. This allows you to maintain optimum stock levels and keep your techs and customers happy.



Wholesaler Number

Number used by the Wholesaler in reference to this part. Provided here as may be different than your part number, allowing you to easily order by the Wholesaler number from within a Purchase Order



Alternative Wholesaler

Second distributor that part may be purchased from.



For a part to be ordered via a purchase order for that vendor, it must have that vendor selected as either the Wholesaler or the Alternative Wholesaler.



The drop down lists all available Vendors set as Wholesalers that a Part could potentially be associated with.



If the Wholesaler is not in the drop down list and no Wholesaler has been selected, then with the drop down selection list blank, click on the Wholesaler ID button to open up a new Vendor entry screen so that you can enter the Vendor details, save, close and then select it from this list.



Or if the Wholesaler is selected from the drop down list, you can open up the Vendor entry screen displaying that Vendor information by clicking on the Wholesaler ID button.



Alternative Wholesaler Number

Number used by the Alternative Wholesaler.



Manufacturer

Part8



This would be who makes the part. This is another way of grouping parts.



The drop down lists all available Vendors set as Manufacturer that a Part could potentially be associated with.



If the Manufacturer is not in the drop down list and no Manufacturer has been selected, then with the drop down selection list blank, click on the Manufacturer button to open up a new Vendor entry screen so that you can enter the Vendor details, save, close and then select it from this list.



Or if the Manufacturer is selected from the drop down list, you can open up the Vendor entry screen displaying that Vendor information by clicking on the Manufacturer button.



Manufacturer Number

This is the number used by the Manufacturer and is another way of identifying the part.



Notes

NotesField

This is where you can enter additional notes about this part if needed.



See also:

Common entry screen menu options

Localize field labels
