Using the Filter Drop List

<< Click to Display Table of Contents >>

Navigation:  Feature Details > Grids >

Using the Filter Drop List



With the Filter Drop List you can:

•Display with no filters

•Save a filter

•Select a previously viewed filter

•Edit a previously saved filter





To display with no filters

•Drop down the Filter Drop List and select No Filter

•FilterSelect2





To save a filter in the Filter Drop List

•Filter the desired column(s)

•You will note as soon as you set any new filters, the Filter Drop List displays as Unsaved filter with a Save button.

FilterSelect3

•When you are finished with the filter settings, click on the Save button in the Filter Drop List to display the saved filter’s edit screen

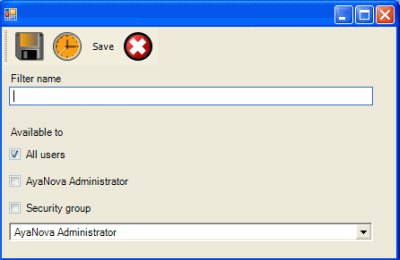

FilterSelectEdit1

•Enter in the Name desired for the saved filter and select what users have access.

oNOTE: you have to be a member of that security group to be able to set it to that security group – otherwise it will not take.

oFor example: if you are a member of the security group Dispatching, but you want to set up filters specifically only for the security group Managers to have in their selection list, you must be logged in as a user of the security group Managers for the availability to take.

•Select Save & Exit

•The Filter Drop List will now display that filter as selected in the list



To select a previously saved filter

•Drop down the Filter Drop List and select the saved filter by its name

FilterSelect4



To edit a previously saved filter

•Drop down the Filter Drop List and select the saved filter by its name

•Select Open button in the Filter Drop List to display the saved filter’s edit screen

FilterSelect5

•Edit as needed

•Select Save & Exit



To delete a previously saved filter

•Edit the previously saved filter

•Select the Delete menu option MenuDelete





Saved filters save only the filter settings. The sort order, sizing and pinning of the grid is an individual user setting.



NOTE: If a user does not show the Open or Save button in the Filter Drop List or the Delete menu option in the saved filter's edit screen, that would indicate that the security group they belong to does not have enough rights to Object.GridFilter in the security group they are a member of.



See also:

Security Groups
